Customize Tubing
Tube Specification
Material: Soft PVC
Shore Hardness: 70–90A
Temperature rating: -20°C to +80°C
Flame rating: UL94 V-0 & UL224 VW-1
Dielectric property: Good insulation
Color: Yellow or White (most common)
Tube ID: 2.0 mm to 10.0mm
Soft PVC advantages:
- Easy to slide over cable
- Flexible for tight bends
- Good grip on wire insulation
- Good printability (smooth surface finish)

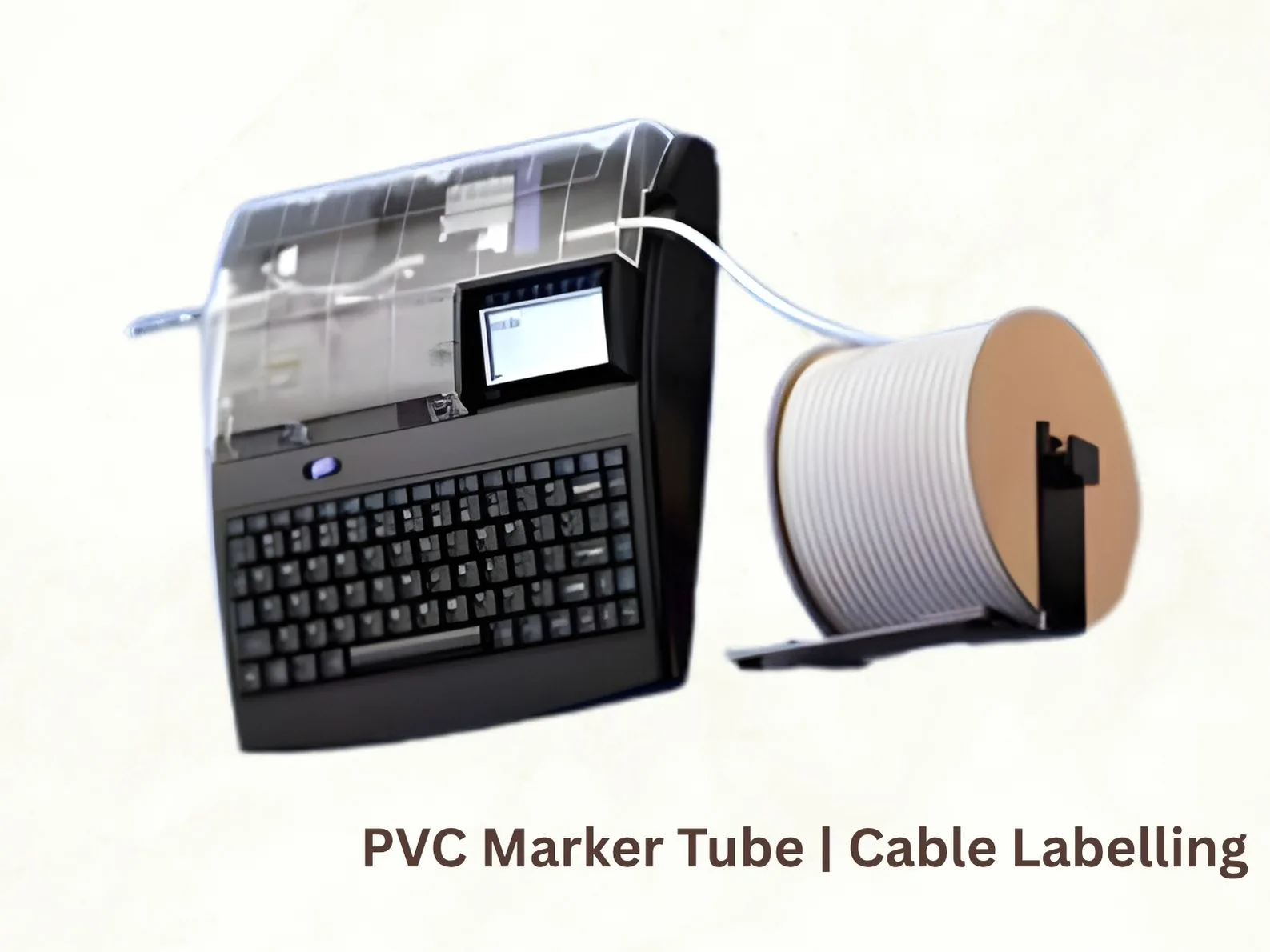

- Supports thermal transfer printing

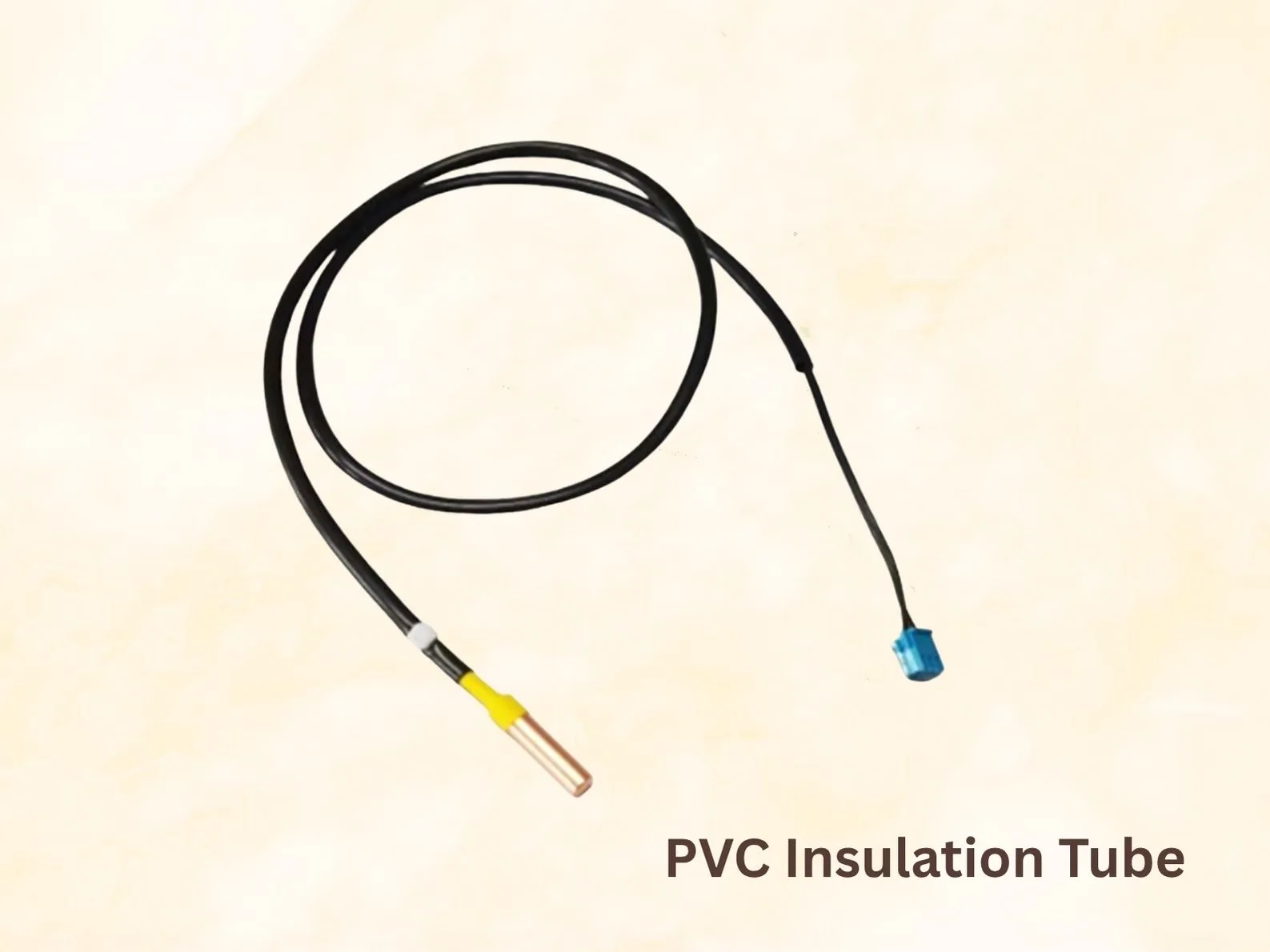

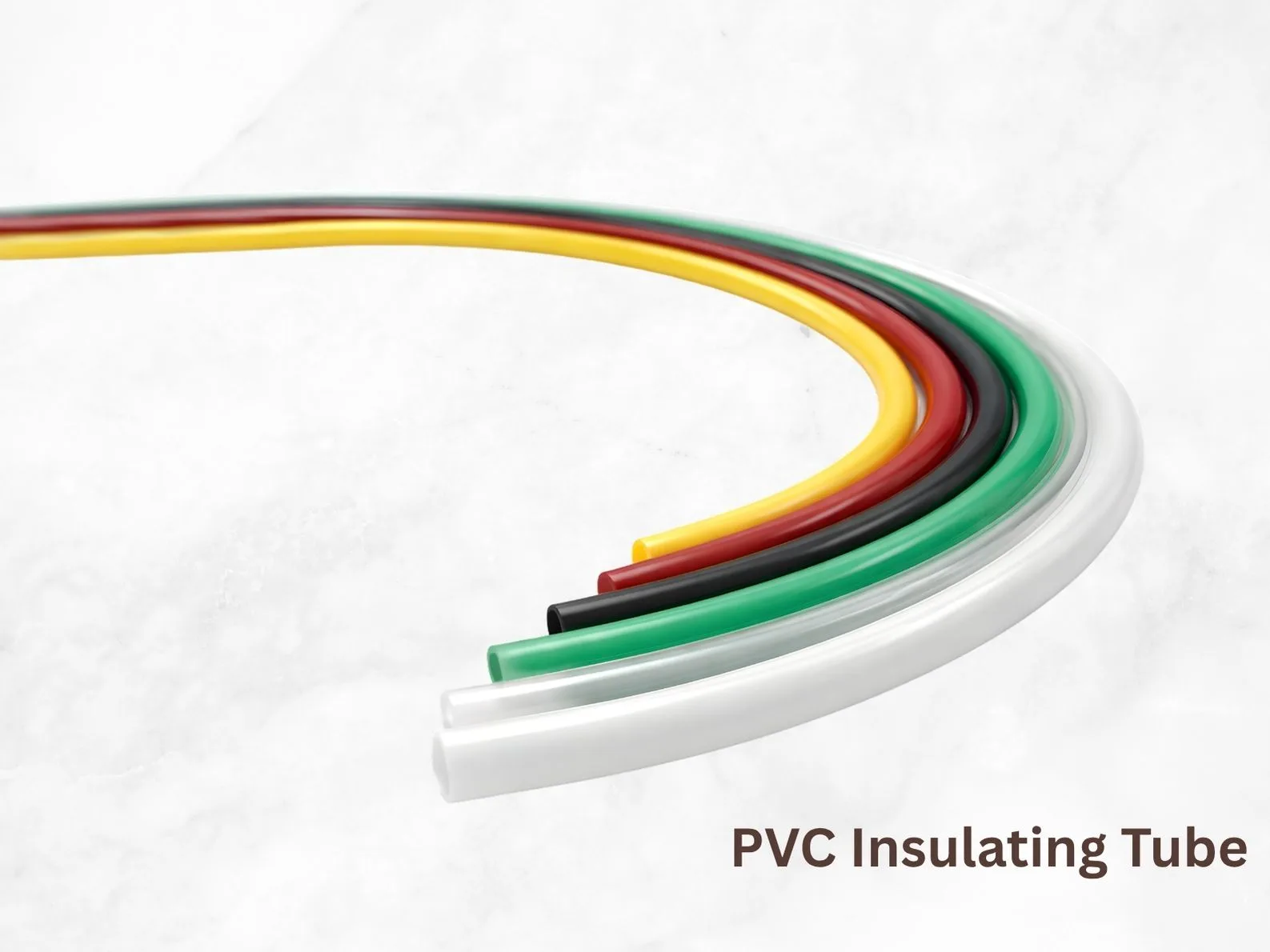

We produce a full range of Electrical Insulation Tube for the following industries
- Material: Soft PVC
- Shore Hardness: 70–90A
- Temperature rating: -20°C to +80°C
- Flame rating: UL94 V-0 & UL224 VW-1
- Dielectric property: Good insulation
- Color: Transparent, Black or White (most common)
Material
- PVC Comply to JIS C 2410-1975, UL94 V-0, V-1, V-2, HB
- PVC Alloy for Oil Resistance and Heat Resistance at 105°C
- Flame Retardant
- Other TPE (Thermoplastic Elastomer) Materials, Withstand Temperature -40 Celcius to + 150 Celcius for Special Applications
Application
- Home Electrical Appliances Wire Hardness Industries
- Automobile Wire Hardness Industries
- Automobile Control Cable Industries
Products
- Nominal Diameter Ranging from 1mm to 50mm
- Thickness Ranging from 0.4mm to 3mm
Customise Services
- Color Matching
- Material Selection and Sourcing
- Physical Property Testing
- Quality Assurance
- After-Sale Responsibility
Application

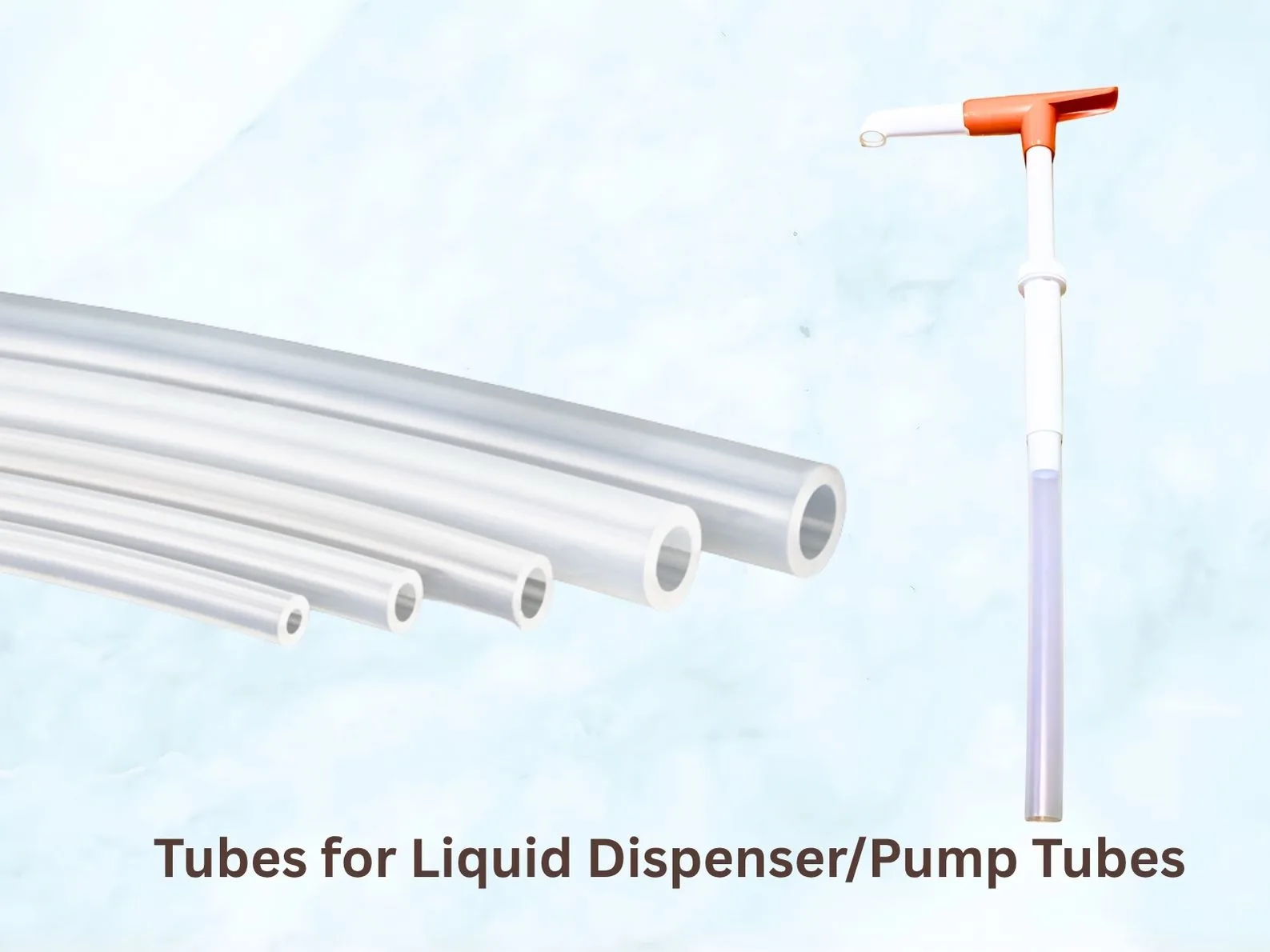

- Liquid Dispensing Tube (Food Grade Available)
- Powder Coating Hose
- Paint Spraying Hose
- Agricultural Spraying Hose (Working Pressure 30-40 kgf/cm2)
- Others Industries Applications:
- Flame Retardant
- Oil Resistant
- Hydrolysis Resistant
Materials
- PVC
- EVA (Ethylene Vinyl Acetate)
- TPU (Thermoplastic Polyurethane)
- Others TPE (Thermoplastic Elastomer) / TPR (Thermoplastic Rubber)
Application
- Food & Sauce dispenser
- Hygiene products dispenser
- Air care products
Materials
- LDPE (Low-Density Polyethylene)
- HDPE (High-Density Polyethylene)
- PP (Polypropylene)
